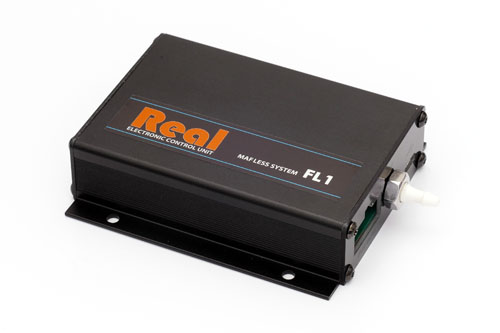

eal-time digital control MAF sensor less System
- D-Jetronic 3D map by intake-pressure and RPM.
- 2D-map by throttle position. (alpha control)
- 21*21 3D high definition map control.
- Map Axis setting.
- Automatic setting function which uses the Airflow sensor.
- Built-in MAP (intake pressure) sensor.
- ECU upper and lower limit.
- High resolution input / output with 12bit A/D D/A converter.
- 1 to 12 cylinders engine can be set.
- 2 out puts for ECU Air flow input.
- Free! Windows configuration software included "Real Manager".
- Setthing data password protection.
- Easy PC connection with USB interface
- 1 hour data-loging by PC.
- Real-time setting with Windows PC.
- Map gradient display.
- Data logger function using PC. (up to 60 minutes in increments, automatic update)
- Dock-window allowing free placement of meters and charts.
- White and night setting convenient dark theme.
- Automatic 3D map setting function.
- Simultaneous graph display of rotation, pressure, throttle, airflow input, output.
- Password protection of setting data.
- English and Japanese software language.
- Windows XP, VIsta, 7, 8, 8.1, 10 Supported software. (free)
